Available on Customer Orders. Dispatched within 2 weeks. Call 61 3 9428 0677 for any inquires.
Notify me when back in stock
COLOUR : Sandstone
MATERIAL : Olefin / Aluminum
SIZE : Pole Diameter : 48mm�
1 year frame guarantee

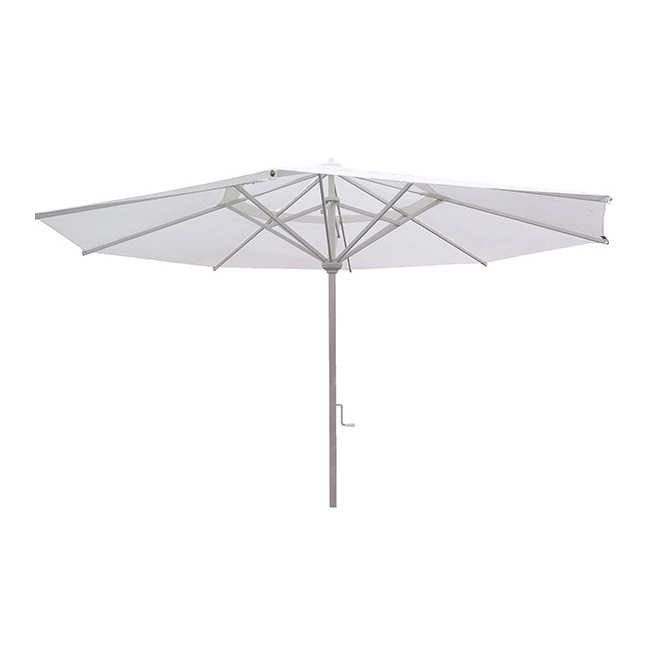

The new Commercial grade Palazzo Range caters for those seeking serious size shade. It is perfect for home and semi-commercial applications. With a telescopic frame, the umbrella top raises on closing so there is no need to move tables, and lowers on opening to reduce open height. Easy to use crank opening. Complete with Sunbrella Acrylic canopy, Protective Cover also included.
Specifications PALAZZO 400 Square or 500 Octagonol
Dimensions (cm) 400 or 500
Mast Height 303 or 307
Clearance 234 or 229
Mast Height (when closed) 378 or 359
Rib to Ground (when closed) 86.5 or 96.5
Area (m2) 16 or 25
Mast 71mm Round
Opening Winder System Tilt N/A
Installation On Concrete “bolt down” – The 25cm round base flange (bottom of the umbrella mast, Pictured above) is supplied with the umbrella. It has 4 countersunk securing holes into which 10mm diameter x 100mm long DYNABOLTS, LOCKSINS or CONCRETE SCREWS (to be purchased) can be secured in pre-drilled holes in the concrete.
Inground Base – (Optional purchase), for cementing into the ground – length 50cm.
