Seima Floor Exit Pipe for Bottle Trap - Pipe Only Chrome 194693 (191824)
Notify me when back in stock
Calculate Shipping
Description
SEIMA / BOTTLE TRAP ACCESSORIES

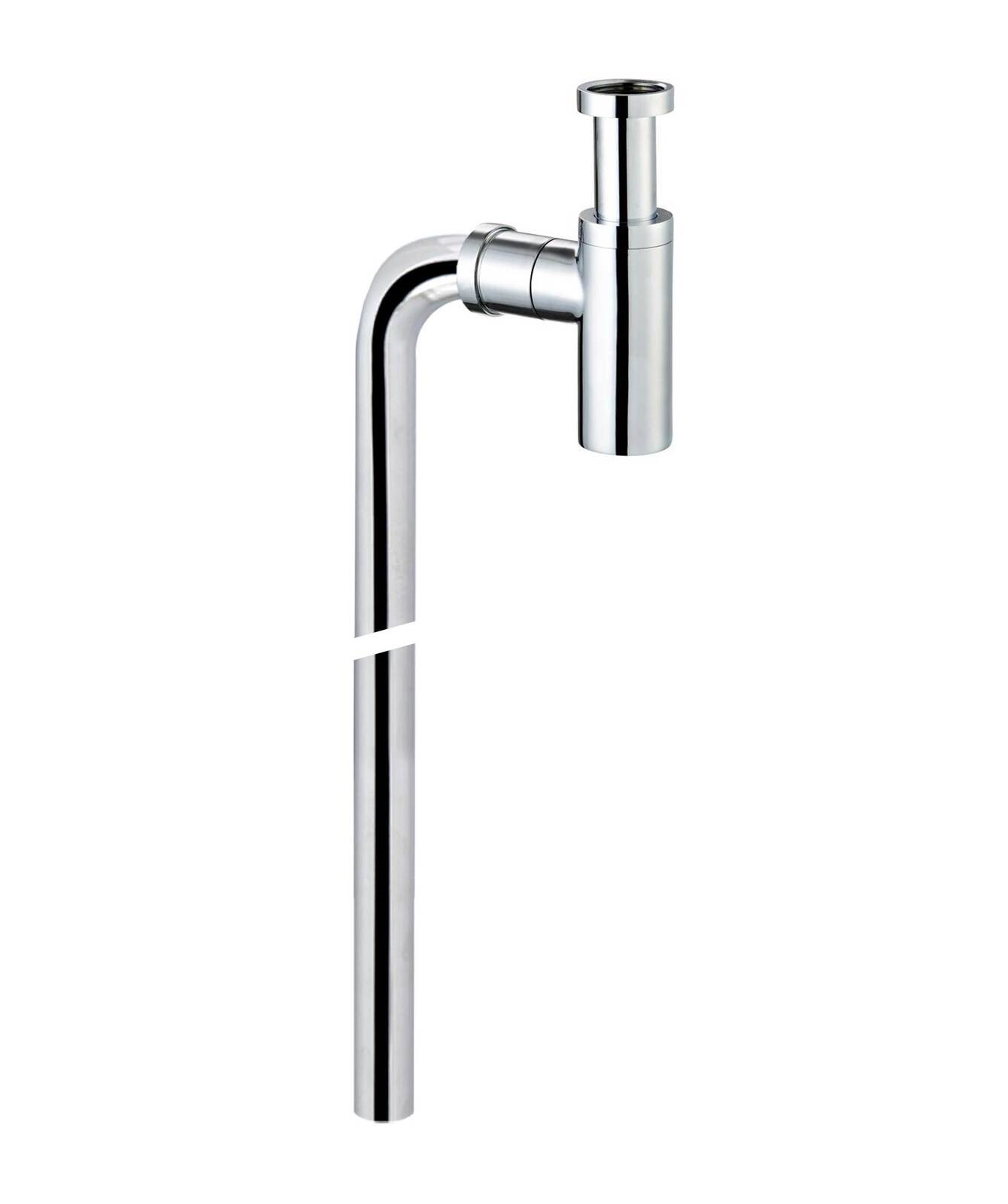

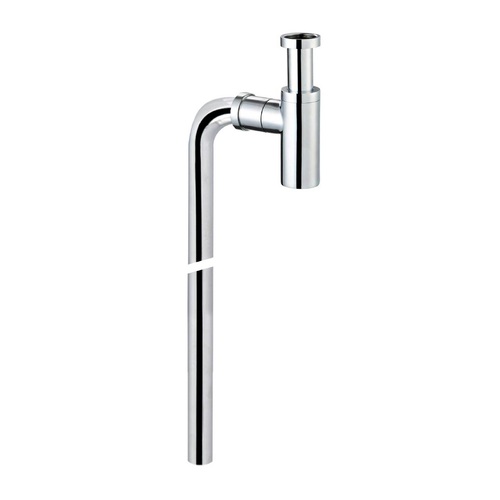

Chrome Floor Exit Pipe for Seima Bottle Trap
The Seima 194693 Floor Exit Pipe is the Chrome pipe-only component used when a Seima bottle trap needs to connect down through the floor rather than exit through the wall. Its long vertical section can be trimmed to suit the installation, providing a clean exposed plumbing solution beneath the basin.
The pipe is finished in Chrome to coordinate with the matching Seima bottle trap and is designed specifically for floor-exit installations. The bottle trap is not included and is sold separately.
FLOOR WASTE INSTALLATIONS
A Floor-Exit Option for Exposed Basin Plumbing
A bottle trap is often left visible beneath a wall basin or other basin with exposed plumbing. Where the waste connection is located in the floor rather than directly behind the basin, the 194693 pipe carries the outlet from the bottle trap down towards the floor connection.
The result keeps the exposed section of the plumbing in a matching Chrome finish instead of introducing a different visible waste pipe beneath the bottle trap.
COMPANION PRODUCT
Designed to Work with the Seima Bottle Trap
This product is the floor exit pipe only and does not include the bottle trap itself. For a complete exposed basin waste installation, pair it with the Seima Chrome Bottle Trap.
Separating the two components allows the bottle trap and floor-exit pipe to be selected individually according to the plumbing layout required beneath the basin.
INSTALLATION FLEXIBILITY
Long Pipe Length with Trim-to-Fit Installation
The floor exit pipe provides approximately 700mm of vertical pipe together with a 180mm upper return. The lower section is designed to be trimmed during installation so the final length can be matched to the bottle trap height and floor waste position.
The outlet is fitted into the floor plumbing connection using a rubber seal and 40mm DWV female socket. Final cutting, positioning and connection should be completed by a licensed plumber.
CHROME FINISH
Made for Plumbing That Remains on Display
The Chrome finish is particularly useful beneath wall basins and other installations where the waste plumbing remains visible. Used with the matching Chrome bottle trap, the floor pipe continues the same bright metallic finish from the trap down towards the floor.
INSTALLATION PLANNING
Check the Floor Waste Position Before Fit-Off
The pipe is supplied with generous length for adjustment on site. Check the basin height, bottle trap position and floor waste location before the outlet pipe is cut to its final length.
Overview ⌄
The Seima 194693 is a Chrome floor exit pipe designed for use with the matching Seima bottle trap where the basin waste plumbing exits through the floor.
The 700mm vertical pipe can be trimmed to suit the installation, while the 180mm upper return connects the floor pipe back towards the bottle trap. This listing contains the floor exit pipe only; the bottle trap is available separately.
Features ⌄
- Floor exit pipe for Seima bottle trap installations
- Chrome finish
- Designed for exposed basin plumbing
- Approximately 700mm vertical pipe length
- Approximately 180mm upper return
- Lower outlet pipe can be trimmed to fit
- Connects into a 40mm DWV female socket
- Metal construction
- Pipe only – bottle trap sold separately
Specifications ⌄
| Model | 194693 |
| Product Type | Bottle Trap Floor Exit Pipe |
| Finish | Chrome |
| Material | Metal |
| Installation Type | Floor Exit |
| Configuration | Pipe Only |
| Bottle Trap Included | No – sold separately |
| Vertical Pipe Length | Approx. 700mm |
| Upper Return | Approx. 180mm |
| Floor Plumbing Connection | 40mm DWV Female Socket |
| Length Adjustment | Trim to Fit |
Installation & Planning ⌄
- This listing is for the floor exit pipe only. The matching Seima bottle trap is sold separately.
- Check the finished basin height, bottle trap position and floor waste location before cutting the pipe.
- The outlet pipe can be trimmed to the required installation length.
- Fit the rubber seal over the outlet pipe before connecting it into the 40mm DWV female socket.
- Ensure seals and O-rings are correctly positioned and lubricated with a suitable silicone-based lubricant where required.
- Clean the Chrome surface with soapy water and avoid abrasive or corrosive cleaners.
- Installation should be completed by a licensed plumber.
Frequently Asked Questions
Does this include the Seima bottle trap?
What is the floor exit pipe used for?
Can the pipe be cut shorter?
What finish is the floor exit pipe?
What does the outlet connect to?
Does the floor exit pipe require professional installation?
Complete the Installation
Pair this floor exit pipe with the Seima Chrome Bottle Trap, or browse more bottle traps and exposed basin waste solutions at Swan Street.
WELS Rating : N/A
