Phoenix Tapware Vivid MKII Compact Twin Shower Chrome 146-6510-00
Notify me when back in stock
Calculate Shipping
Description

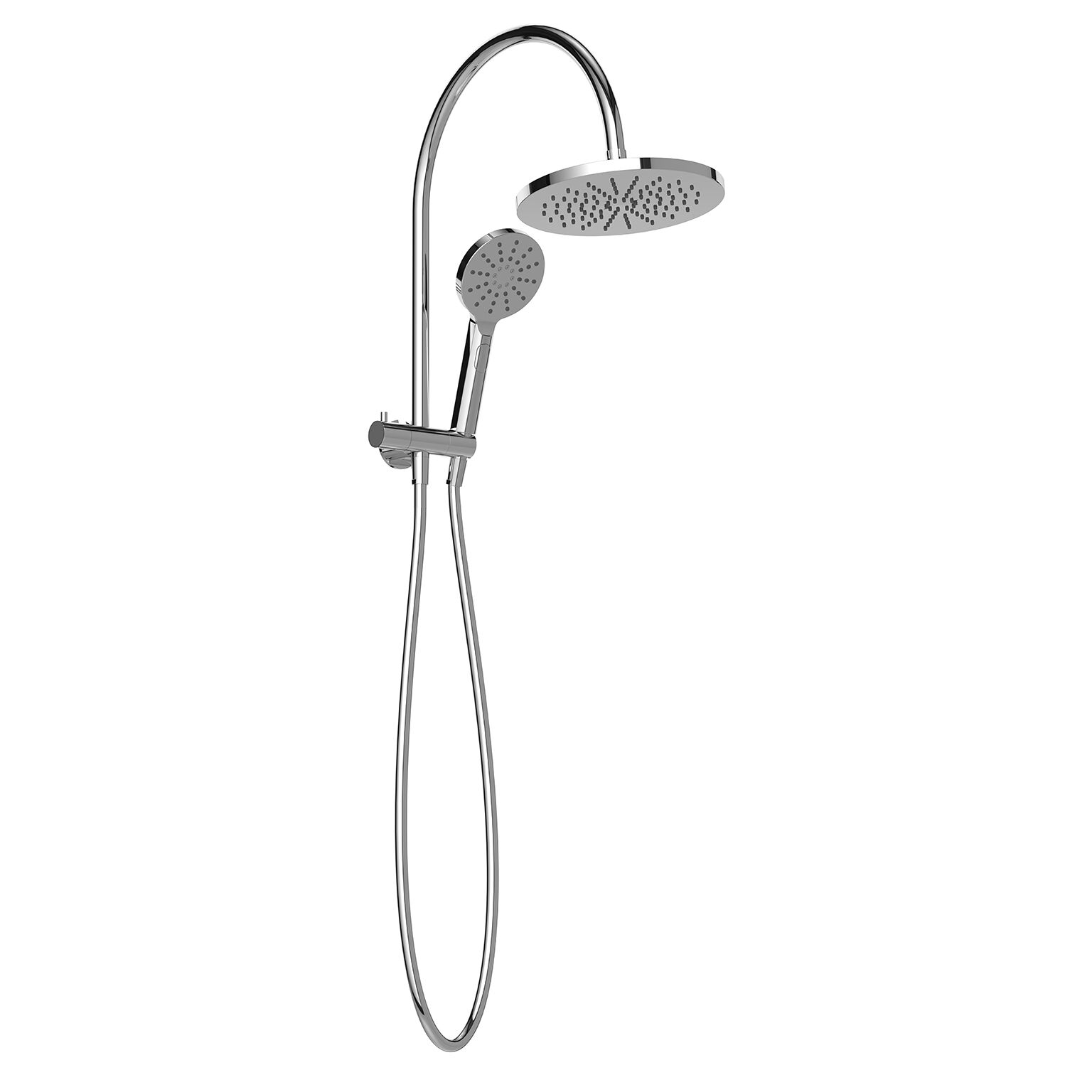

The Phoenix Vivid MKII Compact Twin Shower in Chrome gives you a 250 mm overhead rose and a 120 mm hand shower from one existing ½-inch water inlet, with drill-free installation. A built-in diverter switches between the overhead and the handpiece, which has three push-button spray modes: normal, massage and a mix of both. The rose and handpiece angles both adjust, the smooth hose is easy to clean, and dual check valves are included.
Key Features
- AS2845.1 compliant dual check valves
- Adjustable handpiece angle
- Easy-clean smooth hose in matching finish
- Fits onto existing ½" water inlet with drill-free installation
- Built-in diverter to switch from overhead shower to handpiece
- 3 function, push button handpiece
- Supported by a lifetime warranty
About the range
Vivid MKII takes the classic pin lever and gives it more presence. The machined, stepped pin handle is slightly chunkier than a standard pin, a small change you'll notice every time you turn it on. It's also compatible with Phoenix SwitchMix, so the tapware can be updated down the track without disturbing the plumbing or waterproofing behind the wall.
Specifications
| Specification | Details |
|---|---|
| Brand | Phoenix Tapware |
| Collection | Vivid MKII |
| Model | 146-6510-00 |
| Product Type | Compact Twin Shower |
| Finish | Chrome |
| Mounting | Wall mounted |
| Inlet Connection | Fits existing 1/2 inch plumbing |
| Installation | Drill-free installation |
| Diverter | Built-in diverter switches from overhead to handpiece shower |
| Angle Adjustment | Adjustable rose and handpiece angle |
| Hose | Easy-clean, smooth hose |
| Handpiece Functions | Three functions; push-button handpiece |
| Handpiece Spray Modes | Normal; Normal / Massage; Massage |
| Check Valves | Dual check valves; catalogue states AS2845.1 compliance |
| Overhead Shower Diameter | 250 mm |
| Hand Shower Diameter | 120 mm |
| Arm Diameter | 23 mm |
| Mounting Plate Diameter | 62 mm |
| Height Above Inlet Centre | 461 mm |
| Overhead Rose Height Above Inlet Centre | 216 mm |
| Rose Centre from Wall | 408 mm |
| Rose Centre from Arm | 363 mm |
WELS Star Rating : 4 (> 6.0 but <= 7.5 plus spray force and coverage tests)
WELS Water Consumption : 7.5 (4 star - 7.5lt/min - OH 4 star - 6.5lt/min - HH) L/Min
WELS Registration Number : S49030
Please note : This product is available online only and cannot be viewed prior to purchase.
This product is shipped from our suppliers warehouse to our store.
We will call / email you if pickup is selected or dispatch to your shipping address.
(BA2479)
