Marbletrend Tile Tray Bathroom Shower Base Square Moulded BMC 895W x 895D x 60H BTT8989C4
Notify me when back in stock
Calculate Shipping
Description

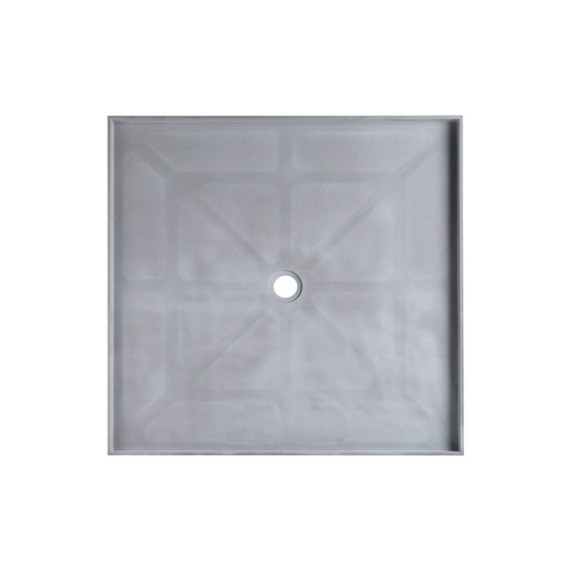

Marbletrend Tile Tray for tiled shower bases
This Marbletrend Tile Tray is a lightweight, leakproof moulded tray designed to simplify building a tiled shower base while keeping the fall consistent to the waste. It can be installed on timber or concrete substrates and supports both hobbed and flat (hobless) floor junctions.
Key features
- Easy-to-install tray that simplifies tiled shower base construction
- Lightweight and leakproof construction
- Made from recycled plastic moulding compound
- Suitable for timber or concrete substrates
- Hobbed or flat floor junctions possible
- Puddle flange and waste included
Specifications
| Product type | Square tile tray for tiled shower base builds |
|---|---|
| Overall size | 895W x 895D x 60H mm (nominal) |
| Compatible substrates | Timber or concrete |
| Material | Recycled plastic moulding compound |
| Included | Puddle flange and waste |
| Other standard sizes | 995 x 995 x 60 mm (square), 1200 x 895 x 60 mm (rectangular) |
| Warranty | 10 years product replacement (refer to manufacturer T&Cs) |
| Notes | All dimensions are in millimetres and are subject to normal manufacturing variation |
Installation notes
- The tray has an in-built fall, so the installation area must be level.
- Timber floors: reinforce framing (noggins at 450mm max centres) and keep the waste outlet framing opening within 200 x 200mm max, with suitable floor sheeting support.
- Fix the tray down with a water-resistant elastic adhesive/sealant applied as a continuous bead to clean surfaces (example referenced: Sikaflex 11FC).
- Ensure a watertight seal between the tray, puddle flange and waste outlet, and complete waterproofing to local building requirements.
- For tiling: clean the tray before tiling (methylated spirits recommended) and use epoxy-based adhesives for direct fixing.
- If the tray lip needs trimming for finished floor height, use a diamond blade and appropriate PPE.
Match it with
Choose a compatible screen to suit your layout and door swing. Shower screens
Compare more base sizes and styles for residential bathrooms. Shower bases
See other Tile Tray sizes and related options. Tile tray search
WELS RATING : N/A
Please note : This product is available online only and cannot be viewed prior to purchase.
This product is shipped from our suppliers warehouse to our store.
We will call / email you if pickup is selected or dispatch to your shipping address.
(BA5380)
