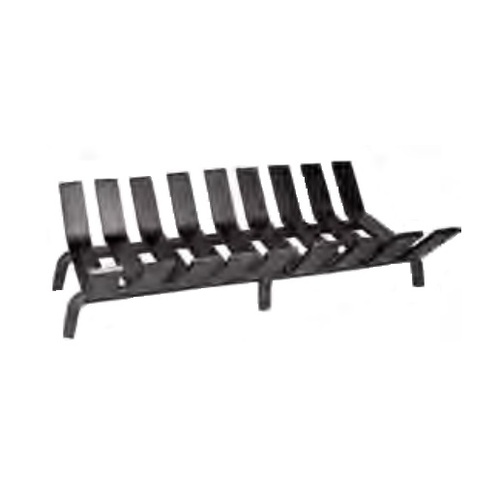

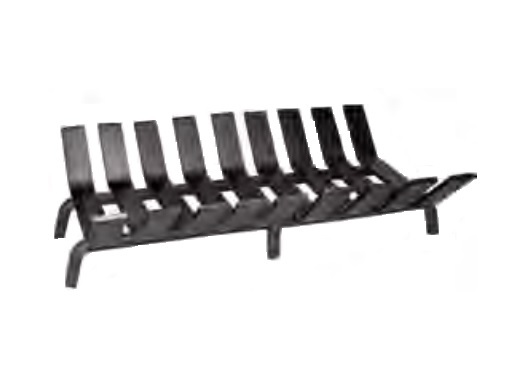

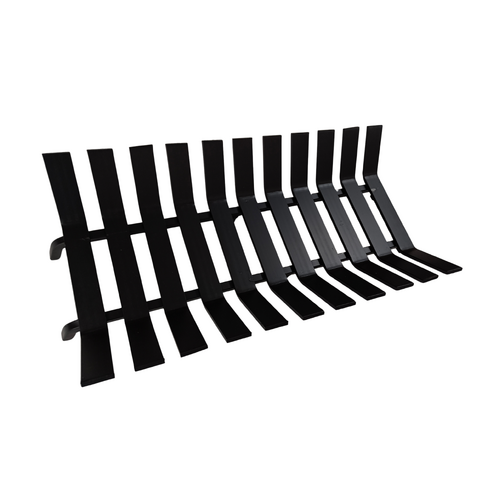

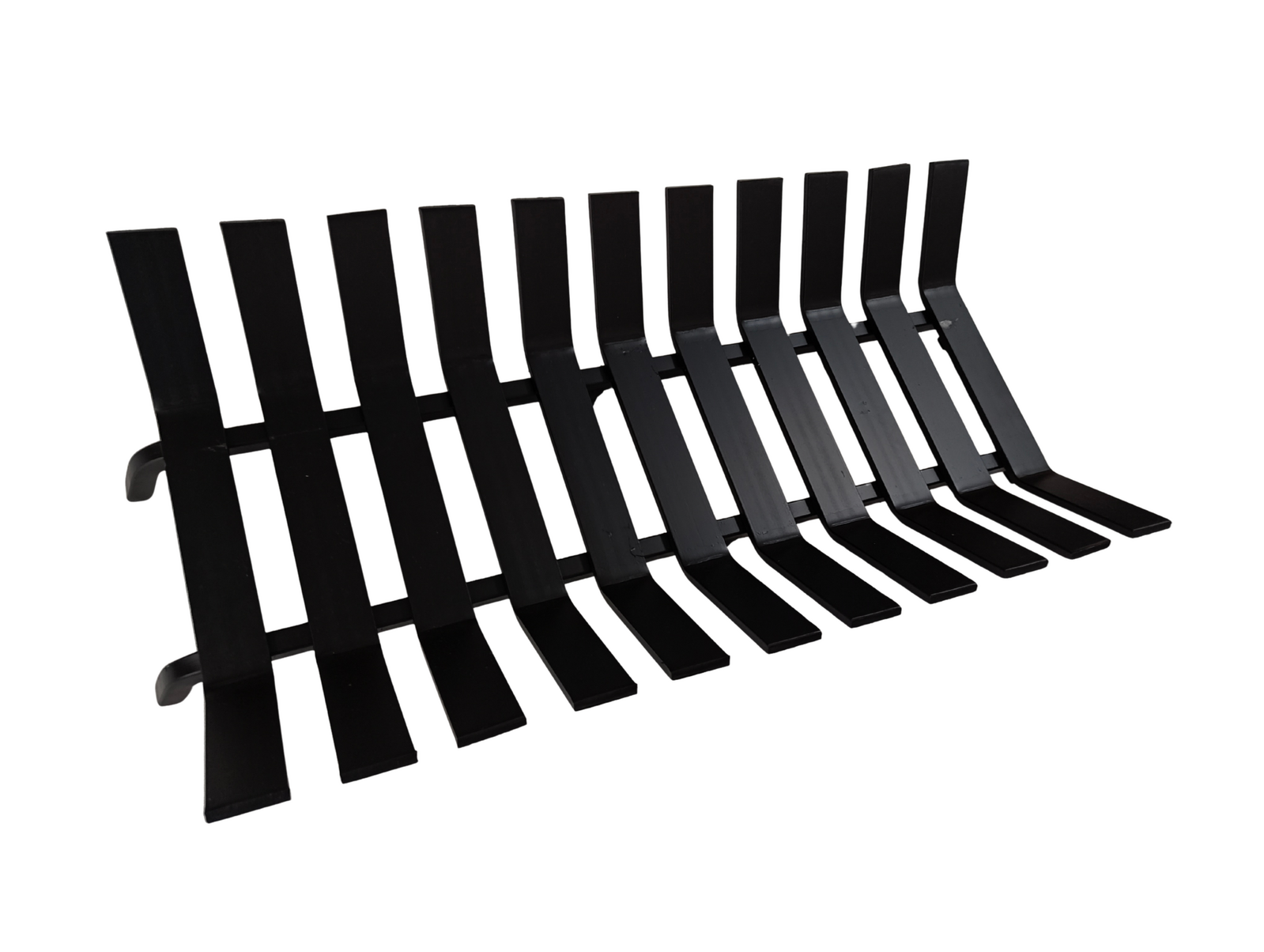

Fire Grate 745mm x 350mm Heavy Duty Steel Basket Open Fireplace Tool 11 Bars SP74E
Notify me when back in stock
Calculate Shipping
Description
This 745mm x 350mm fire grate is a heavy duty basket-style option for open fireplaces that need solid width without stepping up to the largest size in the range. It lifts firewood off the hearth so air can circulate underneath, helping logs burn more cleanly while ash drops away below.
The 11 bar design gives you good support across the fire bed, making it a practical choice for regular wood fires in medium to larger fireplace openings. If you are replacing an older grate, the key is measuring the internal width where the grate will actually sit and leaving a bit of clearance on each side.
Measure the internal width of the fireplace at the point where the grate will sit, not just the outer opening. A little clearance either side makes installation easier and helps avoid a grate that is too tight.
Key features
- Heavy duty 11 bar basket fire grate for open fireplaces
- 745mm width with 350mm front-to-back depth
- 16mm square steel bearers and legs for a solid base
- 8mm thick x 40mm wide flat steel plates
- 160mm overall height helps improve airflow under the firewood
- 50mm ash tray clearance
- Made from AS 3679-250 steel
Specifications
| Model | SP74E |
|---|---|
| Overall size | 745mm (W) x 350mm (front to back) |
| Overall height | 160mm |
| Depth | 90mm |
| Ash tray clearance | 50mm |
| Bearers and legs | 16mm square steel |
| Plates | 8mm thick x 40mm wide flat steel |
| Steel grade | AS 3679-250 |
More options
Need a slightly narrower version with the same 350mm depth? Compare the 680mm x 350mm fire grate.
For a more compact fireplace opening, have a look at the 615mm x 350mm fire grate.
If you want more width across the fire bed, step up to the 875mm x 350mm fire grate.
745mm fire grate FAQs
How do I know if 745mm is the right size?
Measure the internal width of your fireplace where the grate will sit, then allow a bit of clearance so it is not a tight squeeze. The 350mm front-to-back depth also needs to suit the space available inside the hearth.
Why use a basket fire grate?
A basket fire grate keeps the timber raised off the fireplace floor so air can move underneath the logs. That usually helps with airflow, burning performance and ash drop-through compared with stacking wood directly on the base.
Is this a heavy duty steel fire grate?
Yes. This model uses 16mm square steel bearers and legs along with 8mm thick x 40mm wide flat steel plates, so it is built as a solid open fireplace grate rather than a light decorative piece.
Can this replace an older open fireplace grate?
Yes, as long as the measurements suit your fireplace opening. If your old grate was similar in width and depth, this is a straightforward heavy duty replacement option for an open wood fireplace.
