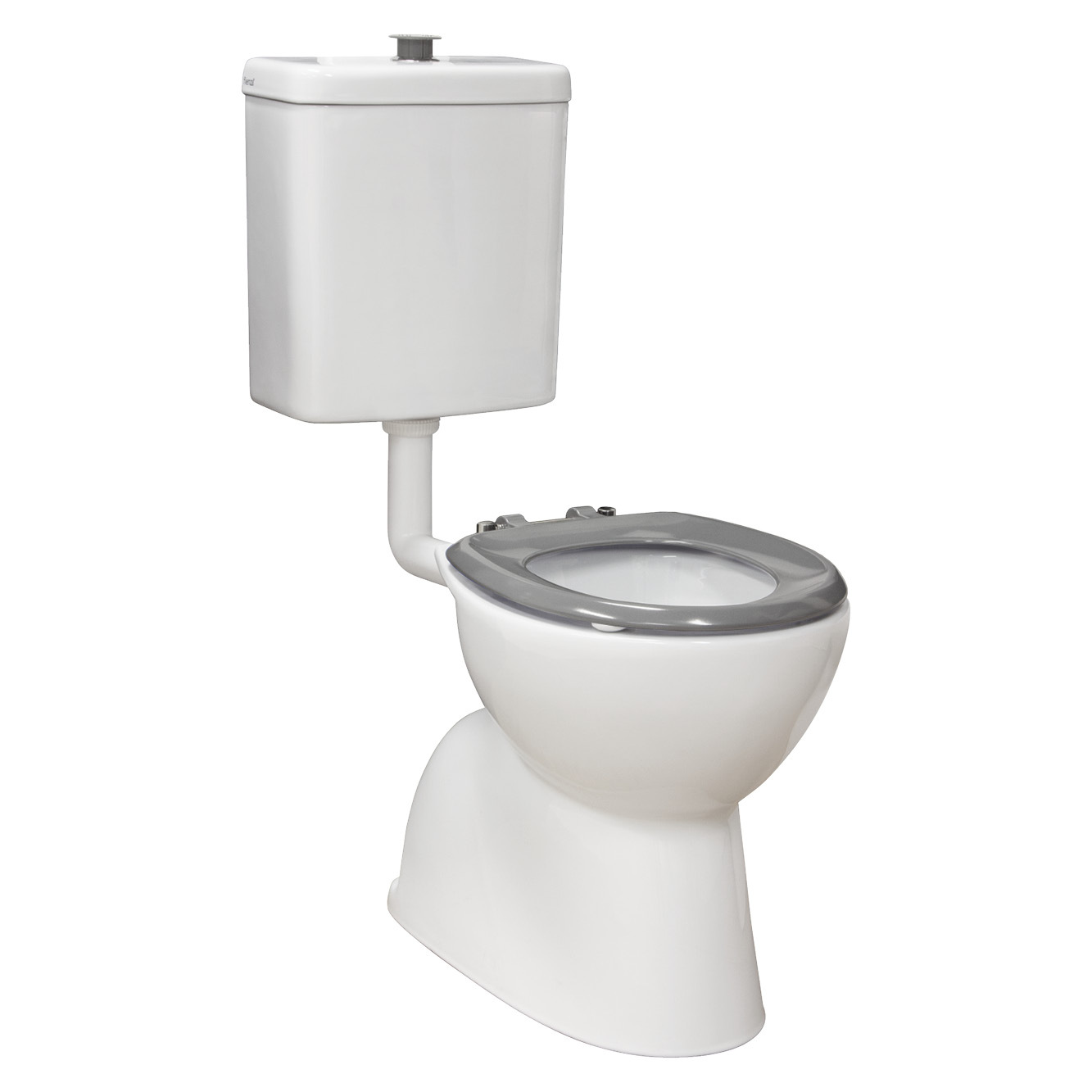

Fienza Stella Care Grey Adjustable Link Toilet Suite S-Trap K001DG
Notify me when back in stock
Calculate Shipping
Description
The Stella Care Grey Adjustable Link Toilet Suite is a specialised solution for accessible and senior living environments. By combining functional compliance with a neutral grey contrast, this suite provides a less clinical look than traditional blue care suites while still meeting the strict visual requirements of Australian Standards (AS1428.1). The extended height pan is specifically engineered to assist users with limited mobility, providing a safer and more comfortable experience in residential care or commercial settings.
Â
Why choose this product?
This suite offers a sophisticated grey alternative for high-contrast accessibility compliance, featuring a flexible link design that makes it the go-to choice for challenging retrofit installations.
Â
Key Features
- Grey High-Contrast Components: Equipped with a single-flap grey seat and large, raised grey flush buttons. This provides the essential visual contrast required for AS1428.1 compliance while maintaining a modern, neutral aesthetic.
- Ergonomic Extended Height: The pan features an increased height of approximately 450mm, significantly reducing the distance users need to lower themselves. This is essential for maintaining independence in bathrooms designed for mobility support.
- Retrofit-Ready Link System: The adjustable link pipe provides a generous set-out range (300mm to 340mm), allowing the suite to be installed in older bathrooms where the waste pipe is positioned away from the wall.
- Quality R&T Internal Valves: Features a reliable R&T flushing mechanism, ensuring consistent water delivery and long-term durability in both domestic and commercial applications.
Â
User Guide: Style & Fitting
- Compliance Note: While this toilet suite is designed to meet AS1428.1 standards, please be aware that full bathroom certification depends on the entire installation. Depending on your council and the specific application (Ambulant vs. Fully Accessible), you will likely require additional components such as correctly positioned grab rails and specific room clearances.
- Best for: Ideal for boutique aged care facilities, independent living units, and commercial bathrooms where a neutral grey contrast is preferred over traditional blue accents.
- Mounting Support: Includes concealed floor fixing screws to ensure a secure, stable installation while keeping the exterior surface smooth and easy to wipe down.
- Functional Quirk: This is a link suite, meaning the connection between the cistern and pan is via an adjustable plastic pipe. While this pipe is visible, it is the key component that allows this suite to fit non-standard plumbing set-outs that back-to-wall suites cannot reach.
Â
Specifications
| Specification | Detail |
|---|---|
| Brand | Fienza |
| Range | Stella Care |
| Model | K001DG |
| Product Type | Adjustable Link Toilet Suite |
| Finish | Gloss White Ceramic / Grey Trim |
| Material | Ceramic |
| Dimensions | 370mm (W) x 800mm (D) x 1100mm (H) |
| Projection from wall | 800mm |
| Trap Type | S-Trap (Adjustable) |
| S-Trap Set-out | 300mm – 340mm |
| Warranty (Residential) | 5 Years Replacement Ceramic, 1 Year Seat & Parts |
Â
Common Questions
Is grey a compliant colour for accessible bathrooms?
Yes. Australian Standard AS1428.1 requires a minimum level of visual contrast between the toilet seat/buttons and the pan/wall. Grey provides a compliant contrast while offering a more neutral look. However, please note that achieving full certification for your bathroom depends on the entire installation environment, including the addition of necessary accessories like grab bars and meeting required clearances.
How much higher is this pan compared to a standard toilet?
This pan has an extended height of approximately 450mm to the top of the seat. Standard residential toilets are usually around 390mm to 420mm. That extra height is crucial for users with limited mobility or knee issues, as it makes sitting and standing much easier.
Can I install this on an existing floor waste?
Yes, provided your waste pipe (S-trap) is positioned between 300mm and 340mm from the wall. This adjustable link suite is specifically designed for these types of retrofits, as the link pipe can be adjusted to bridge the gap between the pan and the wall-mounted cistern.
WELS Star Rating : 4
WELS Water Consumption : 4.4L/3.09L Dual Flush, 3.3L Avg Flush L/Min
WELS Registration Number : L06191
Please note : This product is available online only and cannot be viewed prior to purchase.
This product is shipped from our suppliers warehouse to our store.
We will call / email you if pickup is selected or dispatch to your shipping address.
(BA3017)
