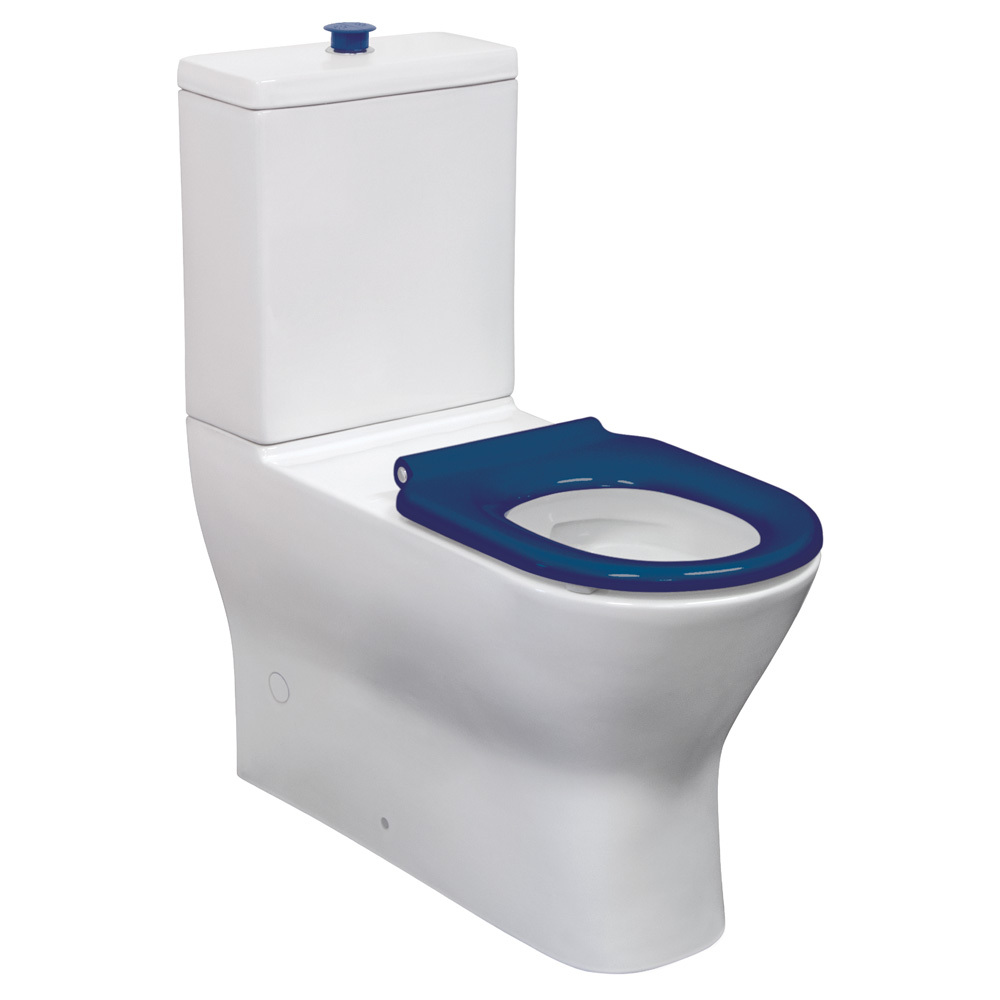

Fienza Delta Care Special Needs Back to Wall Toilet Suite S-Trap Blue Seat K013A
Notify me when back in stock
Calculate Shipping
Description
The Fienza Delta Care Back-to-Wall Toilet Suite is a specialised solution designed for independent living and accessible bathroom applications. Fully compliant with AS1428.1 standards, it features an extended pan projection of 800mm to provide the necessary space for wheelchair transfers, alongside high-contrast blue components to assist users with visual impairments.
Â
Why choose this product?
Pick the Delta Care if you are renovating for accessibility or aging-in-place. It combines certified Australian Standard compliance with modern rimless hygiene, ensuring the bathroom remains safe, functional, and easy to maintain without a clinical appearance.
Â
Key Features
- AS1428.1 Accessible Compliance: Features an 800mm extended projection and a 440mm pan height, meeting the strict structural requirements for Australian accessibility standards.
- Visual Contrast Components: Equipped with a high-visibility blue seat and raised blue flush buttons, specifically designed to assist users with vision impairment and limited dexterity.
- Tornado Rimless Flush: Utilises a powerful circular flushing action that effectively scrubs the entire bowl, eliminating the traditional internal rim to ensure a more hygienic, bacteria-free environment.
Â
User Guide: Style & Fitting
- Ideal for: Accessible bathroom modifications, commercial disability-compliant washrooms, and residential independent living suites.
- Space Planning: At 800mm deep, this suite has a significantly larger footprint than a standard toilet. Ensure your bathroom layout can accommodate the extra projection while still allowing for the required clear floor space for wheelchair rotation.
- Installation Requirements: This model is configured for an S-Trap installation with a versatile set-out range of 90mm to 280mm, making it highly adaptable for both new builds and retrofits into existing floor waste positions.
- Water Inlet: Offers universal connection flexibility with top-left inlet or bottom-left/right inlet options to suit your plumbing configuration.
Â
Specifications
| Specification | Detail |
|---|---|
| Brand | Fienza |
| Range | Delta Care |
| Model | K013A |
| Product Type | Accessible Back-to-Wall Toilet Suite |
| Finish | Gloss White / Blue Seat & Buttons |
| Material | Ceramic |
| Dimensions | 365mm (W) x 800mm (D) x 875mm (H) |
| Trap Type | S-Trap (90-280mm Set-out) |
| Inlet Type | Top Left or Bottom Left/Right |
| Warranty (Residential) | 5 Years Ceramic, 1 Year Seat & Labour |
Â
Common Questions
Why is the toilet 800mm deep?
The 800mm projection is a specific requirement of the Australian Standard AS1428.1. This extra depth ensures there is enough room for a wheelchair to be positioned beside the pan, allowing for a safer and more stable side-transfer for the user.
Why are the seat and buttons blue?
The blue colour provides high visual contrast against the white ceramic and bathroom walls. This is essential for users with low vision, as it helps them clearly identify the seating area and the flush mechanism, reducing the risk of accidents.
Can I use a different seat with this pan?
To maintain AS1428.1 compliance, you must use a seat that provides the required colour contrast and structural stability. While other colours like grey are sometimes available, replacing the blue seat with a standard white one would typically void the accessible certification of the installation.
WELS Star Rating : 4
WELS Water Consumption : 4.5L/2.9L Dual Flush 3.2L Avg Flush L/Min
WELS Registration Number : L06484
