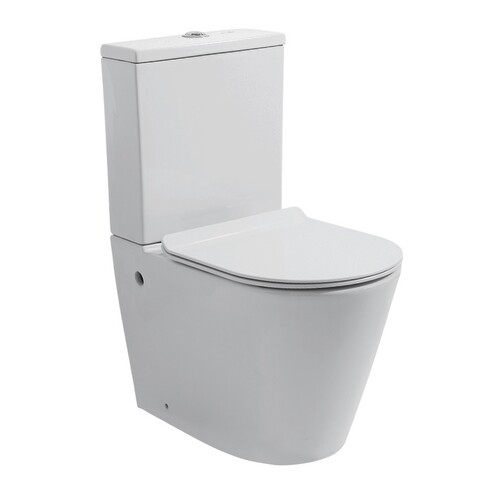

Zenmo JAMIE-II Rimless Wall Faced Toilet Suite

The Zenmo JAMIE-II is a rimless wall faced toilet suite with a compact 615mm projection, making it a practical option for bathrooms where efficient use of floor space matters. Its clean back-to-wall profile conceals the plumbing behind the pan for a more streamlined bathroom finish.

Designed with renovation flexibility in mind, the JAMIE-II can be installed with either an S-trap or P-trap waste connection and provides a 100–180mm adjustable S-trap set-out. Water can be connected through an upper left-hand rear inlet or lower right-hand bottom inlet, helping accommodate a range of existing bathroom plumbing layouts.

Quick guide: A compact rimless wall faced toilet with a 615mm projection, 420mm pan height and flexible S-trap, P-trap, rear or bottom inlet installation options.

Key Features

• Rimless wall faced toilet suite
• Compact 615mm overall projection
• Gloss white ceramic construction
• Suitable for S-trap or P-trap installation
• Adjustable 100–180mm S-trap set-out
• 180mm P-trap set-out
• Upper left-hand rear or lower right-hand bottom water inlet connection
• 420mm pan height
• Square flush button design
• Alternative flush button and matching hinge cover finishes available separately

Compact 615mm Wall Faced Design

At approximately 615mm from the finished wall to the front of the pan, the JAMIE-II has a relatively compact footprint while retaining the clean appearance of a wall faced toilet suite. The pan sits back against the wall, reducing visible pipework and making the area around the toilet less visually cluttered.

The current JAMIE-II design has an overall height of approximately 835mm and a pan height of 420mm, providing useful dimensions to consider when planning the toilet position alongside nearby vanities, shower screens, doors or other bathroom fixtures.

Flexible S-Trap or P-Trap Installation

For floor waste installations, the JAMIE-II provides an adjustable S-trap set-out from 100mm to 180mm. This flexibility can be particularly useful when replacing an existing toilet and working with a waste position that is already fixed within the floor.

A 180mm P-trap configuration is also available for installations using a wall waste connection. The existing plumbing position should always be checked against the installation drawing before ordering.

Rear or Bottom Water Inlet

The JAMIE-II accommodates either an upper left-hand rear inlet or a lower right-hand bottom inlet. Having both connection arrangements available gives the installer more scope to work with existing water supply positions without leaving unnecessary plumbing exposed around the finished toilet.

Specifications

Frequently Asked Questions

Is the Zenmo JAMIE-II suitable for replacing an existing toilet?

It can be a useful renovation option because it supports both S-trap and P-trap installations and provides an adjustable 100–180mm S-trap set-out. Measure from the finished wall to the centre of the existing floor waste and have the position checked against the installation drawing before ordering.

How far does the JAMIE-II project from the wall?

The current JAMIE-II specification drawing shows an overall projection of approximately 615mm. Its relatively compact depth can be useful where clearance between the toilet and nearby bathroom fixtures, doors or walkways is limited.

Can the water supply enter from behind the toilet?

Yes. The JAMIE-II accommodates an upper left-hand rear water inlet as well as a lower right-hand bottom inlet, giving the installer options depending on the existing water connection position.
