ECT Global Rimless Wall Faced Toilet Suite Bottom Inlet S or P Trap Jess-II

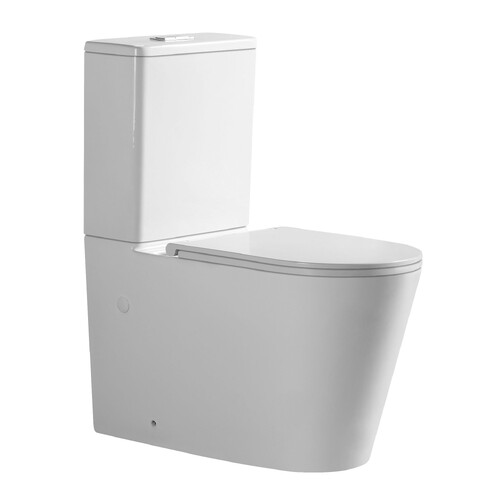

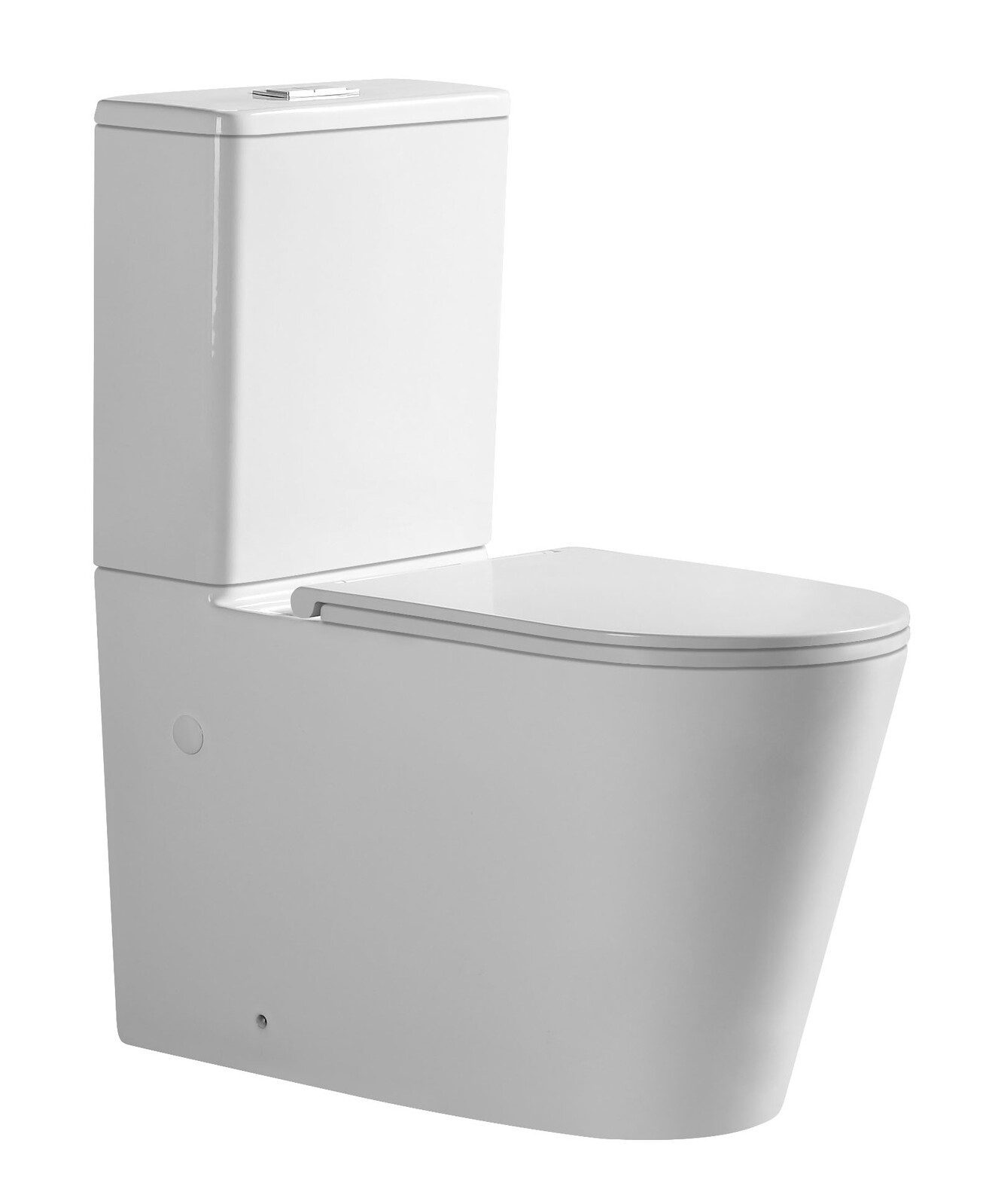

Zenmo JESS-II Rimless Wall Faced Toilet Suite

The Zenmo JESS-II is a rimless wall faced toilet suite designed to give renovated and new bathrooms a clean, streamlined appearance while retaining useful flexibility for plumbing installation. Its concealed wall-facing design keeps the pan sitting neatly back against the wall, reducing exposed pipework around the toilet.

The JESS-II accommodates either an upper left-hand rear water inlet or lower right-hand bottom inlet and can be installed with an S-trap or P-trap connection. The generous 100–240mm S-trap set-out range can be particularly useful when replacing an existing toilet where the floor waste position is already established.

Quick guide: A practical choice for bathroom renovations where you want a modern rimless wall faced toilet with flexible inlet positioning and a wide S-trap installation range.

Key Features

• Rimless wall faced toilet suite for a clean, contemporary bathroom finish
• Gloss white ceramic construction
• Suitable for both S-trap and P-trap installations
• Wide 100–240mm S-trap set-out range
• 180mm P-trap installation
• Choice of upper left-hand rear inlet or lower right-hand bottom inlet connection
• Soft-closing detachable toilet seat
• Square flush button

Flexible for Bathroom Renovations

Replacing an existing toilet can become difficult when the waste position does not suit a narrowly specified new pan. The JESS-II offers an S-trap set-out range of 100–240mm, giving your plumber substantially more flexibility when working with an established floor waste position.

A 180mm P-trap configuration is also supported for bathrooms using a wall outlet. Final suitability should always be checked against the existing plumbing and finished wall and floor positions before installation.

Wall Faced Rimless Design

The JESS-II combines a wall faced pan with rimless flushing technology. Bringing the suite back against the wall creates a more integrated appearance and removes much of the exposed plumbing normally visible behind a conventional toilet.

The rimless pan design also removes the traditional enclosed flushing rim around the bowl, leaving fewer concealed areas around the rim when the toilet is being cleaned.

Rear or Bottom Water Inlet

The suite provides flexibility for different water supply locations, with provision for an upper left-hand rear inlet or lower right-hand bottom inlet. This makes the JESS-II useful for both new installations and renovation projects where the existing water connection influences the toilet selection.

Specifications

Frequently Asked Questions

Will the JESS-II work when replacing an existing S-trap toilet?

Potentially, and its wide set-out range is one of the useful features for renovation work. The JESS-II supports an S-trap set-out from 100mm to 240mm. Measure from the finished wall to the centre of the existing floor waste and have the installation confirmed by your plumber before ordering.

Can the JESS-II be connected through the wall instead of the floor?

Yes. In addition to its S-trap configuration, the JESS-II supports a P-trap installation with a 180mm set-out for bathrooms using a wall waste connection.

Can I use an existing rear water connection?

The JESS-II provides an upper left-hand rear inlet as well as a lower right-hand bottom inlet. Check the position of your existing water supply against the installation requirements before fitting, particularly when replacing an older toilet.

Why choose a rimless toilet?

A rimless pan removes the traditional enclosed rim around the inside of the bowl. This leaves fewer concealed areas around the rim and makes the bowl easier to access when carrying out normal bathroom cleaning.
